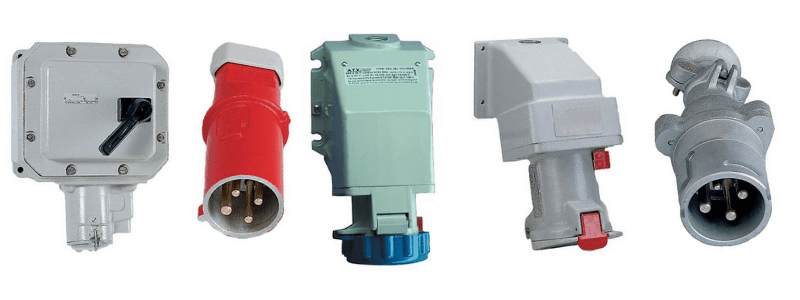

PLUGS AND SOCKETS

Type

• Wall Socket for 2P - 2P+E - 3P: high impact resistance polycarbonate
• Wall Socket for 3P+E - 3P+N+E: high impact resistance fiberglass reinforced polyester
• Plug, mobile socket and flush socket: polyamide

Use

• Plugs and receptacles are used with portable or stationery
electrical equipment such as:
— Lighting systems
— Conveyors
— Heaters
— Motor generators
— Air conditioning equipment
— Compressors
— Pumps
• For use in corrosive atmospheres and installations in Zone 1 and 2 and 21 and 22 of the oil and gas industry; such as:
— Refineries
— Chemical and petrochemical plants
— Pipelines
— Loading docks
— Onshore and offshore drilling platforms

Features & Benefits

• Plug and socket system is designed with a safe disconnect mechanism to insure maximum hazardous location protection:
— The contact separation is in a flameproof chamber
— The automatic electrical disconnection of each phase is contained in a second flameproof chamber
• Short circuit protection is 20 kA, while normal reference is 10 kA.
• Different voltages are color coded for easy identification.
• The receptacles are keyed to accept only ATX plugs (other plugs
can not be inserted).
• ATX plugs can be used in non-hazardous IEC 309 sockets

Operating Temprature

-40 °C to +55 °C (-40 °F to +131 °F)

Type tested and certified by

ATEX/IECEx Certifications and Compliances, EURASEC Certification

Sizes

2P, 2P+E, 3P+E, 3P+N+E, 3P

Type

•  Wall Socket: high impact resistance fiberglass reinforced polyester
•  Plug, mobile socket and flush socket: polyamide

Use

• Plugs and sockets are used with portable or stationery electrical equipment such as:
— Lighting systems
— Conveyors
— Heaters
— Motor generators
— Air conditioning equipment
— Compressors
— Pumps
• For use in corrosive atmospheres and installations in Zone 1 and 2 and 21 and 22 of the oil and gas industry, such as:
— Refineries
— Chemical and petrochemical plants
— Pipelines
— Loading docks
— Onshore and offshore drilling platforms

Features & Benefits

• Plug and socket system is designed with a safe disconnect mechanism to insure maximum hazardous location protection:
 — The contact separation is in a flameproof chamber
— The automatic electrical disconnection of each phase iscontained in a second flameproof chamber
• Short circuit protection is 20 kA, while normal reference is 10 kA.
•  Different voltages are color coded for easy identification.
• The sockets are keyed to accept only ATX plugs (other plugs can not be inserted).
• ATX plugs can be used in non-hazardous sockets.

Operating Temprature

-40 °C to +55 °C (-40 °F to +131 °F)

Type tested and certified by

ATEX/IECEx Certifications and Compliances, EURASEC Certification

Sizes

2P+E, 3P+E, 3P+N+E

Type

• Socket: high impact resistance fiberglass reinforced polyester
• Flap cover and plug: polyamide

Use

• Plugs and sockets are used with stationary or portable electrically operated devices such as:
— Welding devices
— Lighting systems
— Conveyors
— Heaters
— Motor generator sets
— Air conditionings
— Compressors
— Pumps
 • For use in corrosive atmospheres and installations in Zones 1, and 2 and 21 and 22 of oil and gas industry, such as
 — Refineries
— Chemical and petrochemical plants
— Pipelines
— Onshore and offshore drilling platforms

Features & Benefits

• Positive polarization: only ATX plugs of same style, number of poles and ampere rating may be used with these sockets.
• Interlocked 3-pole or 4-pole Ex de disconnecting on-load switch, with auxiliary early break contact capacity 2.5 mm2 (0.004 in2) max .
• Plug is mechanically locked in socket when switch is ”ON”.
• Switch operating handle can be padlocked in ”OFF” position (max 4 padlocks ).
• Plug cannot be inserted or removed unless switch is in ”OFF” position.

Operating Temprature

 -30 °C to +55 °C (-22 °F to +131 °F)

Type tested and certified by

ATEX/IECEx Certifications and Compliances, EURASEC Certification

Sizes

3P+E, 3P+N+E

Type

• Socket: 316L stainless steel
• Flap cover and plug: polyamid

Use

• Plugs and sockets are used with stationary or portable electrically operated devices such as:
— Welding devices
— Lighting systems
— Conveyors
— Heaters
— Motor generator sets
— Air conditioning
— Compressors
— Pumps
 • For use in corrosive atmospheres and installations in Zones 1, and 2 and 21 and 22 of oil and gas industry, such as
 — Refineries
— Chemical and petrochemical plants
— Pipelines
— Onshore and offshore drilling platforms

Features & Benefits

• Positive polarization: only ATX plugs of same style, number of poles and ampere rating may be used with these sockets.
• Interlocked 3-pole or 4-pole Ex de disconnecting on-load switch, with auxiliary early break contact – capacity 2.5 mm2 (0.004 in2) maximum.
• Plug is mechanically locked in socket when switch is ”ON”.
• Switch operating handle can be padlocked in ”OFF” position (max 4 padlocks).
• Plug cannot be inserted or removed unless switch is in ”OFF” position.

Operating Temprature

-30 °C to +55 °C (-22 °F to +131 °F)

Type tested and certified by

ATEX/IECEx Certifications and Compliances, EURASEC Certification

Sizes

3P+E, 3P+N+E

Type

• 16 A socket outlet body and socket: gray painted marine grade aluminum alloy
• 32 A socket outlet body: gray painted marine grade aluminum alloy body
• 32 A socket outlet flush socket: cast iron
• 80 and 125 A socket outlet body and socket: painted cast iron with marine anti-corrosion treatment
• Plugs: gray painted marine grade aluminum alloy

Use

• Hazardous areas where plugs and sockets are used with portable or stationary electrical equipment such as lighting and heating systems, conveyors, motor starters, air-conditioning appliances, compressors and pumps.
• Ideal for hazardous areas where weatherproof and robust equipment is required.
• Ideal for hazardous areas Zones 1, 2, 21 and 22 in the oil and gas industry; such as refineries, pipelines and offshore sea-rigs.

Features & Benefits

• General — 16 A:
— Flameproof seal with cylindrical spigot joint.
— Automatic disconnection of the poles by patented dualsafety device, which ensures the following once the plug is removed from the socket outlet:
– Automatic and simultaneous disconnection of each phase in a flameproof chamber
– Disconnection, once power is off, of the pins in the second flameproof chamber
— Cover can be padlocked – 1 padlock diameter 5 mm (0.20 in), length 45 mm (1.77 in).
— Wall sockets and flush sockets incorporate a safety device that only accepts plugging of ATX plugs which are certified for use in hazardous areas.
— Plugs can be used with IEC 60309-2 compliant industrial pin socket outlets in non-hazardous areas.
• General — 32 A:
— Flameproof seal with cylindrical spigot joint.
— Mechanical interlocking device ensures:
– Disconnection takes place within the flameproof chamber before the plug is removed from the socket outlet
– The plug cannot be removed when energized
— Straight handle placed on the plug for use with IEC 60309-2 compliant industrial pin socket outlets in non-hazardous areas.
• General — 80 A and 125 A:
— Interlocking mechanical device which prevents:
– The switch from closing until the plug is fully inserted into the wall socket
– The plug from being removed until the switch is off
— Socket outlet supplied with a load break isolating switch ensuring disconnection with power on.
— Switch handle can be padlocked in the ”off” position (3 padlocks).
• Wall Sockets — 16 A:
— 2 x M20 threaded cable entries (1 at the top, 1 at bottom).
— Supplied with one M20 plug.
— Connection on 2 x 4 mm2 (0.003 x 0.006 in2) terminals.
— Earth terminals: internal and external, with 4 mm diameter screws.
• Wall Sockets — 32 A:
— 2 x M25 threaded cable entries (1 at the top, 1 at bottom).
— Supplied with one M25 plug.
— Connection on 10 mm2 (0.016 in2) terminals.
— Earth terminals: internal and external with 6 mm diameter screws.
• Wall Sockets — 80 A:
— 1 x M32 threaded cable entry (on the top side).
— Connection via 8 mm (0.32 in) diameter lug terminals (not supplied).
— Internal earth through 35 mm2 (0.054 in2) connection and external earth through 6 mm (0.24 in) diameter screws
• Wall Sockets — 125 A:
— 1 x M50 threaded entry (on the top side).
— Connection via 8 mm (0.32 in) diameter lug terminals (not supplied).
— Internal earth through 35 mm2 (0.054 in2) connection and external earth through 6 mm (0.24 in) diameter screws.
• Plugs — 16 A:
— 1 cable entry through integrated M25 cable gland
– 9 to 12 mm (9 to 12 in) diameter for the 2P+E plug
– 12 to 15 mm (0.47 to 15 in) diameter for the 3P+E plug
– 15 to 17 mm (0.59 to 0.70 in) diameter for the 3P+N+E plug
— Connection on 2.5 mm2 (0.004 in2) maximum terminals.
• Plugs — 32 A:
— 1 cable entry via integrated cable gland diameter 17 to 22 mm (0.70 to 0.87 in).
— Connection on 6 mm2 (0.009 in2) maximum terminals.
• Plugs — 80 A:
— 1 cable entry via supplied cable gland diameter 18 to 28 mm (0.71 to 1.1 in).
— Connection on 16 mm2 (0.025 in2) maximum terminals.
• Plugs — 125 A:
— 1 cable entry via supplied cable gland diameter 30 to 36 mm (1.18 to 1.42 in).
— Connection on 35 mm2 (0.054 in2) maximum terminals.

Operating Temprature

 -40 °C to +55 °C (-40 °F to +131 °F)

Type tested and certified by

ATEX/IECEx Certifications and Compliances, EURASEC Certification

Sizes

2P+E, 3P+E, 3P+N+E,

LIGHTING

Type

FELED SERIES

Use

• For use in locations where:
— Hazardous areas are designated as Zone 1 and 2 – 21 and 22
— A high degree of corrosion resistance is required
— Protection against dirt, water and moisture is necessary
• Typical applications include:
— Oil refineries
— Petrochemical facilities
— Food processing plants
— Waste and water treatment plants
— Underground tunnels
— General manufacturing facilities

Features & Benefits

• Available in 5000K or 4000K Color Temperatures.
• Meets photobiological requirement for Risk Group 0 (RG0).
• Easy to retrofit in same mounting footprint as Appleton’s FE series nonmetallic fluorescent luminaires.
• Full range of lumen outputs, with light distribution equivalent to Appleton’s FE series fluorescent luminaires.
• Corrosion-resistant fiberglass reinforced polyester body and hinged polycarbonate lens.
• High impact resistance housing (20 Joules – IK10) from -30 °C to +55 °C (-22 °F to +131 °F) ambient temperature and wind profile for use in extreme offshore and onshore
environments.
• 60,000+ hour LED life for years of maintenance free operation.
• Lightweight design, hinged cover with captive screws, and terminal block wiring for easy installation and maintenance.
• Contemporary, low profile design suitable for tight spaces.
• Standard screw-type terminal block can accept 1.5 to 6 mm2 wire.
• Field replaceable LED driver.
• Industry-leading thermal management for safe, reliable operation over wide temperature range.
• Universal, high efficiency, drivers cover voltage requirements for 120-277 Vac, 170-300 Vdc, 50/60 Hz +/- 10%.
• High power factor electronic driver (>0.95).
• Standard 6KV surge suppression.
• M20 plug or M25 plug provided.
• Latch assembly and elastomer gasket seals against water and dust ingress, IP66.
• Easily accessed for maintenance using Allen key or straight blade screwdriver.
• Central opening with unique patented release system to prevent damage.
• Can be horizontally or vertically mounted.
• Available in 3 hour emergency version, including built-in monthly self- test. Test results through multi-colored LED.
• Positive safety switch disconnects power to LED’s and driver to allow maintenance in hazardous locations (emergency version).
• Ex e battery with plug-in connector

Operating Temprature

 -30 °C up to +55 °C

Type tested and certified by

ATEX, IECX

Sizes

0.140A at 230Vac to 0.333A at 230Vac

Type

FE SERIES

Use

• Can be installed in hazardous areas designated as Zone 1 and 2 – 21 and 22.
• For use in locations where a high degree of corrosion resistance is required.
• For indoor/outdoor use where protection against dirt, water and moisture is necessary.
• Typical applications include oil refineries, petrochemical facilities, pulp and paper mills, food processing plants, warehouses, underground tunnels and general manufacturing facilities.

Features & Benefits

• Corrosion-resistant fiberglass reinforced polyester body and hinged polycarbonate lens.
• High impact resistance housing (20 Joules – IK10) from -40 °C to +55 °C (-40 °F to +131 °F) ambient temperature and wind profile for use in extreme offshore and onshore environments.
• Latch assembly and elastomer gasket seals against water and dust ingress, IP66/67.
• Easily accessed for maintenance using Allen key or straight blade screwdriver.
• Central opening with unique patented release system to prevent damage.
• Can be horizontally or vertically mounted.
• Hinged parabolic reflector for high lumen output efficiency.
• Vibration resistant spring loaded lampholders for bi-pin (G13) or mono-pin (Fa6) versions.
• Positive safety switch disconnects power to lamps and ballast to allow maintenance in hazardous locations.
• Electronic multi-tap ballast 110 to 254 Vac/Vdc +/- 10P/60 Hz, for global applications. High power factor electronic ballast (>0.95). EOL (End Of Life) protection in accordance to the latest EN/IEC 60079-7 standard.
• Two channel ballast prevents dark areas by allowing one lamp to remain lit if one fails.
• Ballast plug-in with Ex e connector for quick and error-free maintenance.
• Available in 3 hour or 90 minute emergency versions, including multi-tap ballast with built-in monthly self test. Test results through multi-colored LED.
• Ex e battery with plug-in connector.

Operating Temprature

-40 °C to +55 °C

Type tested and certified by

CE, ATEX, IECX

Sizes

18W to 58W

Subscription

Sign up for our newsletter to receive latest updates.
